3 cabezales Epson I3200

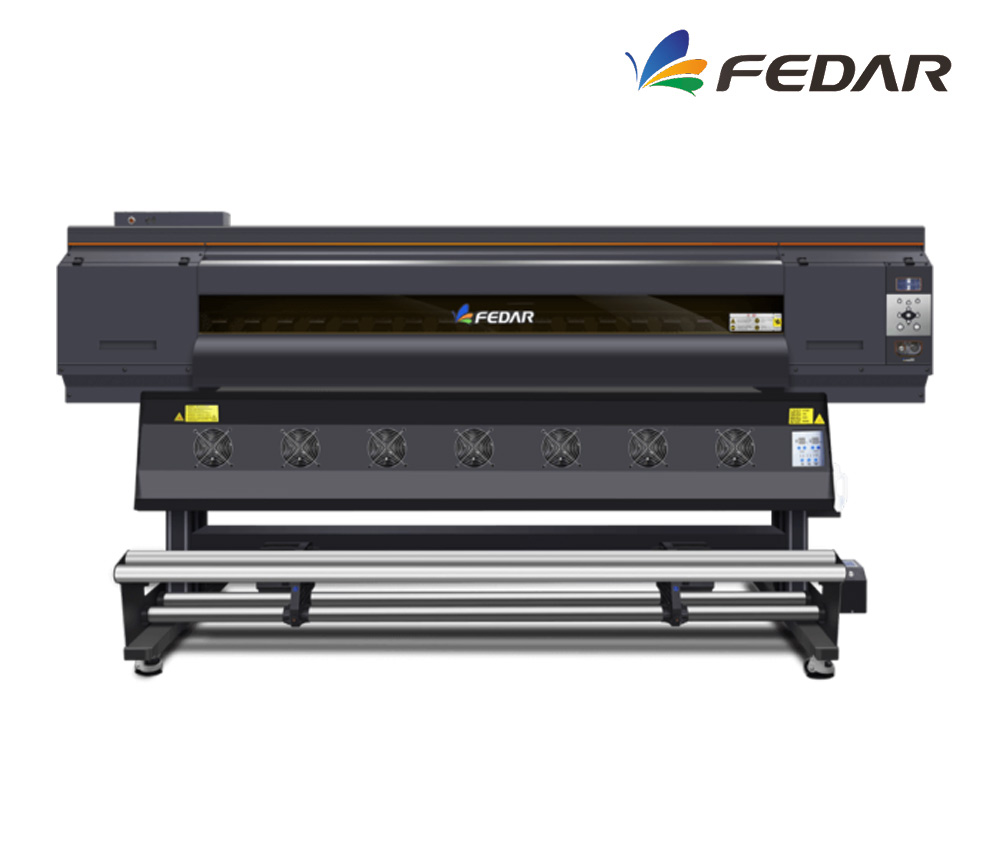

Plotter FD 5193

Descripción

Description

Specifications:

Printhead: 3*Epson I3200-A1
Printhead Resolution: 3200 DPI
Print Speed: 120 m²/h
Print Width: 1900 mm
Ink: Dye-sublimation ink, Pigment ink
Media: Transfer paper, Poster paper
RIP Software: Maintop, Photoprint, Neostampa, Onyx, etc.

Textile/Rigid Material Compatibility:

100% Polyester
Microfiber
Dry-fit/Sportswear Fabrics
Microtulle/Lycra
Synthetic fabrics with high polyester content (85% or more)
Sublimation is chemically bonded to polyester, which is why it works best on these materials: vibrant colors, excellent definition, and maximum wash resistance.

COTIZAR Request a quote

Características

- HIGH-PRECISION PRINT HEAD 3 Epson I3200-A1 print heads, 2-pass speed can reach up to 120㎡/h.
- ADVANCED CAPPING STATION Equipped with an advanced intelligent automatic print head cleaning and moisturizing device, which can pump ink well and maintain fluent ink flow.
- INTELLIGENT LACK OF INK ALARM Reduces the tediousness of frequently checking the remaining ink quantity, and at the same time, reminds you to add ink in time to ensure the continuity of the printing job.
- INTELLIGENT MIST PRINTING AND VSDT PRINTING The unique intelligent two-dimensional mist and wave-mist function, and VSDT variable droplet technology, obviously improve the printing quality.
- STABLE MEDIA FEEDING AND TAKE-UP SYSTEM Convenient and fast, printing media is quickly stored, equipped with automatic paper measurement and anti-rubbing function; if consumables are deformed, the printing automatically stops to prevent scratching the print head.
- WIDE APPLICATION With the help of the heat transfer machine, the printed images can be transferred to many different non-elastic materials, such as polyester, chiffon, silk, and flags. There is no limit to the patterns, making it a good choice in the field of decoration, clothing, and advertising.
- SPECIALLY DESIGNED CARRIAGE The position of the print head can be adjusted according to different printing media and anti-collision devices on both ends to give the print head more comprehensive safety protection.
- THK SILENCE GUIDE RAIL Using the imported Japanese THK silent linear guide rail to effectively reduce resistance and noise during the printer's operation.
- LARGE CAPACITY INK TANKS Four units of 3L large-capacity ink tanks provide ink independently and continuously, ensuring the long-term continuity of ink output.
- INTELLIGENT HOT AIR DRYER The intelligent integrated air and heat dryer, two-stage heating, middle hot air, and intelligent start-stop technology ensure drying performance and greater energy savings at the same time.
- LEADSHINE CHINESE MOTOR The Leadshine two-way brushless motor has higher precision, smaller length error, and more stable performance.
- IGUS INK CHAIN FROM GERMANY High-quality IGUS ink chain imported from Germany, to ensure the good completion of the printing work.
- FLUORINATED RUBBER PINCH ROLLER The US fluorinated rubber pinch roller prevents static electricity from flying ink, prints more accurately, and avoids wrinkles.
- TWO-LEVEL INK SUPPLY SYSTEM Adopts a two-level ink supply system that allows continuous printing for a long time to ensure the image output quality.
- COMPATIBILITY Win 7 / Win 8 / Win 10.

Maintenance

- Daily power-on (even if you don't print) Helps the inks circulate and prevents bubbles from forming or drying out in the heads.
- Automatic cleaning activated Let the equipment do its maintenance cycle. Do not interrupt it: it prolongs the life of the head.
- Keep the capping station, dampers, and wiper clean These consumables accumulate ink and lint. A weekly cleaning prevents stains and clogs.
- Control the ambient humidity Ideal: 45%–60%. Low humidity dries the ink; high humidity generates droplets on the paper.
- Check feed rollers and trays If they are dirty, they mark the paper or generate banding.
- Use the equipment at least 3–4 times per week Sublimation plotters need constant ink movement.
