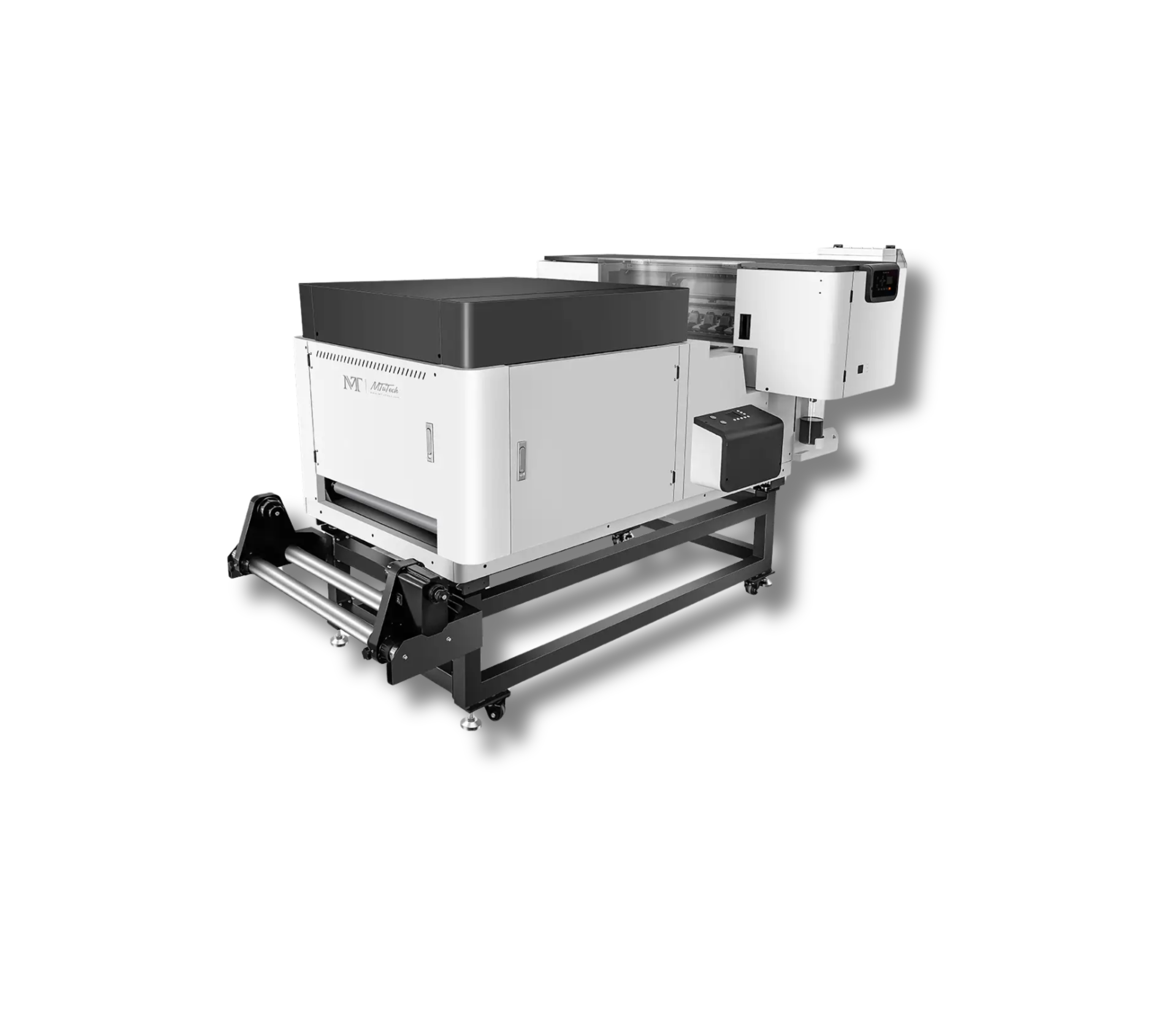

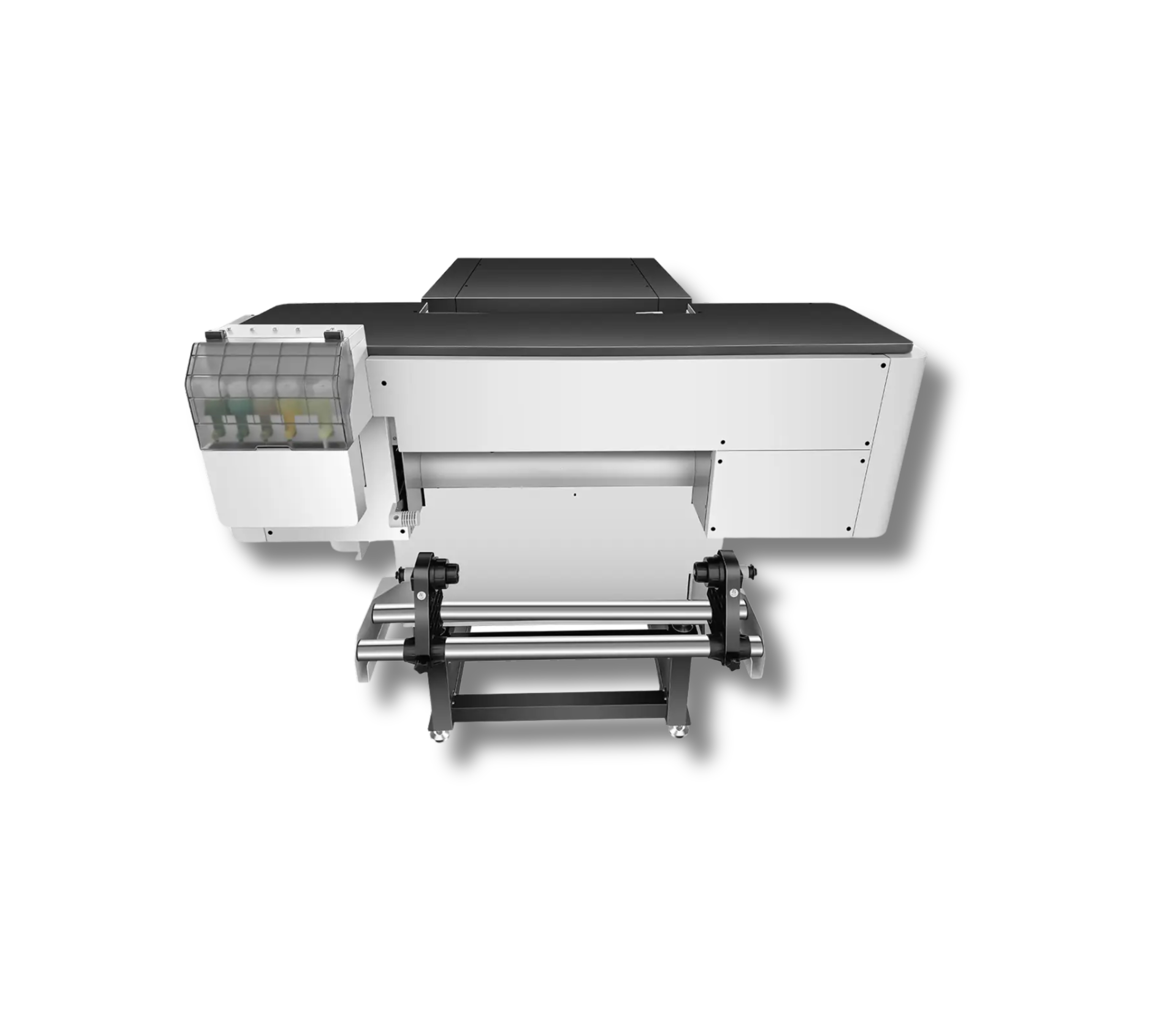

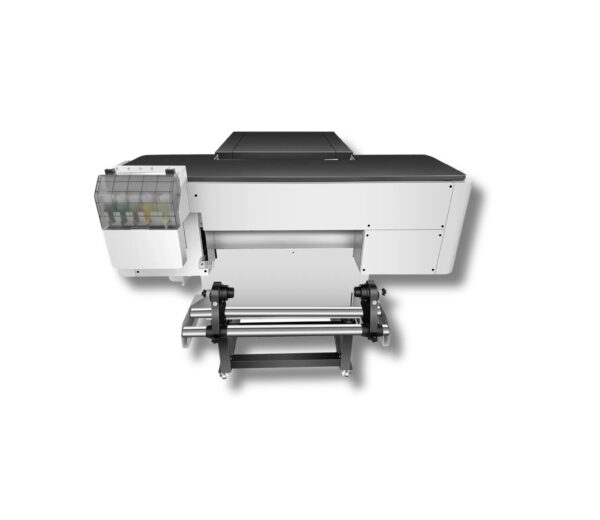

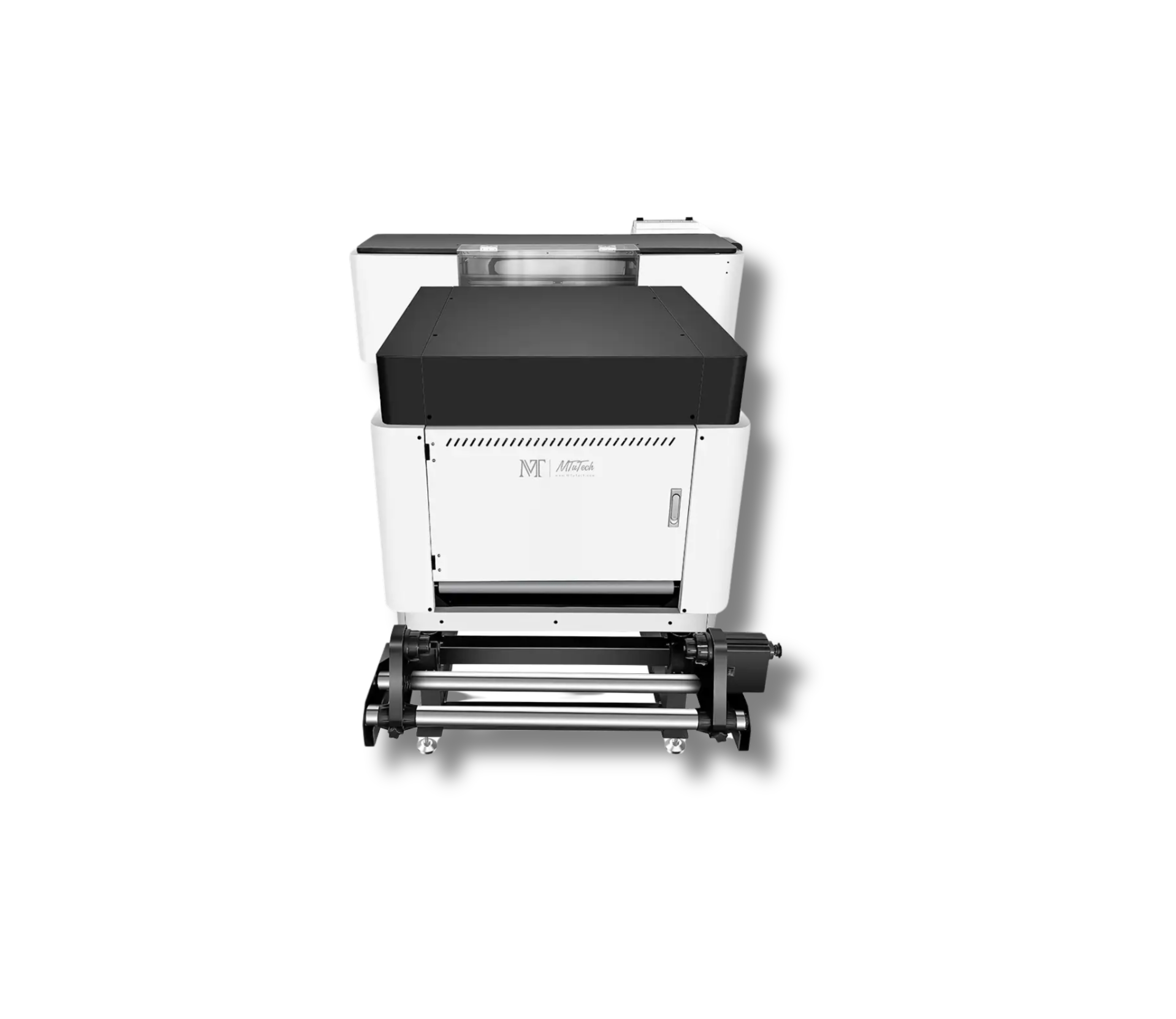

2 Epson I3200 printheads

M TU Tech

Descripción

Description

Maximum print width: 600 mm

Maximum speed: 20 m²/h

Compatible media: 620 mm PET film

Number of printheads: 2 Epson I3200

Compatibility: Windows 10, Windows 11

Textile Compatibility/Rigid Fabrics:

100% Cotton
100% Polyester
Cotton/Polyester Blends
Lycra – Elastane
Fleece – Rustic – Jersey
Sports Fabrics
Dark, Light, and Brightly Colored Fabrics
Denim / Jean
TNT (Non-woven Fabric)
Leatherette and Some Flexible Synthetics

COTIZAR Request a quote

Características

Maintenance

Dust-Free Environment Keep the work environment dust-free to prevent it from affecting printing.
Temperature and Humidity The machine should operate at a temperature of 25–30°C and a humidity of 40–60%.
Platform Cleaning Keep the entire printer tidy and clean, removing dust from friction areas.
Cleaning the Underside of the Printhead Move the carriage to the cleaning position, clean the underside of the printhead with a non-woven cloth dampened with cleaning fluid or distilled water, removing dirt from the printhead and surrounding areas.

Related Products

AGP 4 Printheads

4 cabezales Epson I3200
Maintenance
- Dust-Free Environment Keep the work environment dust-free to prevent it from affecting printing.
- Temperature and Humidity The machine should operate at a temperature of 25–30°C and a humidity of 40–60%.
- Platform Cleaning Keep the entire printer tidy and clean, removing dust from friction areas.
- Cleaning the Underside of the Printhead Move the carriage to the cleaning position, clean the underside of the printhead with a non-woven cloth dampened with cleaning fluid or distilled water, removing dirt from the printhead and surrounding areas.
Max width: 600mm

Speed: 23 m2/h

Media: Pet Film 620mm

See more

Request a quote
ORIC A3

2 Epson I1600 printheads
Maintenance
- Dust-free environment Keep the working environment dust-free to prevent it from affecting printing.
- Temperature and humidity The machine should operate at a temperature of 25–30°C and with a humidity of 40–60%.
- Platform cleaning Keep the entire printer tidy and clean, removing dust from friction areas.
- Cleaning the bottom of the printhead Move the carriage to the cleaning position, wipe the bottom of the printhead with a non woven cloth dampened with cleaning fluid or distilled water, removing dirt from the printhead and nearby areas.
Max width: 300mm

Speed: 7.1 m2/h

Media: Pet Film 320mm

See more

Request a quote
Plotter FD6198E

8 cabezales Epson I3200
- HIGH-RESOLUTION PRINTHEAD 8 Epson I3200-A1 printheads; 1-pass speed can reach up to 320 m²/h.
- SMART LOW-INK ALARM Reduces the need to frequently check remaining ink levels and reminds you to add ink in time to ensure continuous printing workflow.
- STABLE MEDIA FEEDING AND TAKE-UP SYSTEM Convenient and fast; media is quickly loaded, equipped with automatic paper measurement and anti-scratch function. If the consumables deform, printing stops automatically to prevent head strikes.
- ADVANCED CAPPING STATION Equipped with an advanced intelligent printhead cleaning and moisturizing system, providing safe and convenient maintenance and cleaning functions with simpler operation.
- SPECIALLY DESIGNED CARRIAGE The printhead position can be adjusted according to different printing media, with anti-collision devices on both sides.
- SMART HOT-AIR DRYER The intelligent drying system is synchronized with printing. Temperature can be adjusted in real-time during the printing process.
- FLUORORUBBER PRESSURE ROLLER The U.S. fluororubber pressure roller prevents static electricity. The exclusive lifting device compensates for partial paper bulging during the printing process.
- HIGH-PRECISION PLATFORM The printing platform is controlled within ±7.5 wires and features hard oxidation treatment on the surface to prevent long-term deformation.
- THK SILENT GUIDE RAIL Uses Japanese THK silent linear guide rail for smoother movement and longer service life.
- LEADSHINE SERVO MOTOR The bidirectional brushless Leadshine motor offers higher precision, lower length deviation, and more stable performance.
- LARGE-CAPACITY INK TANKS Four 3L large-capacity ink tanks supply ink independently and continuously.
- IGUS INK CHAIN FROM GERMANY High-quality IGUS ink chain imported from Germany, ensuring excellent printing performance.
- COMPATIBILITY Win 7 / Win 8 / Win 10.
Maintenance
- Daily power-on (even if you don't print) Helps the inks circulate and prevents bubbles from forming or drying out in the heads.
- Automatic cleaning activated Let the equipment do its maintenance cycle. Do not interrupt it: it prolongs the life of the head.
- Keep the capping station, dampers, and wiper clean These consumables accumulate ink and lint. A weekly cleaning prevents stains and clogs.
- Control the ambient humidity Ideal: 45%–60%. Low humidity dries the ink; high humidity generates droplets on the paper.
- Check feed rollers and trays If they are dirty, they mark the paper or generate banding.
- Use the equipment at least 3–4 times per week Sublimation plotters need constant ink movement.
Max width: 1900mm

Speed: 320 m²/h

Media: Thermal transfer paper

See more

Request a quote

Starter Kit 2 DTF AGP E30 Printer + 30 cm DTF Oven + Automatic Heat Press

1 Epson F1080-A1 Printhead

Technical Specifications

AGP DTF E30 Printer

Feature	Specification
Technology	DTF (Direct to Film)
Printhead	1 Epson F1080-A1
Print Width	Up to 330 mm
Speed	4 m²/h
Ink System	CMYK + White
Print Media	DTF PET Film
Image Formats	JPG, TIFF, PDF
Operating System	Windows 10/11

30 cm DTF Oven

Feature	Specification
Equipment Type	DTF Curing Oven
Specified Width	30 cm
Function	Drying and curing of DTF film
Application	Melting of DTF adhesive powder
Control	Temperature and time adjustment

Automatic Heat Press

Feature	Specification
Equipment Type	Automatic Heat Press
Working Area	38 × 38 cm
Temperature	0–210 °C
Timer	0–999 seconds
Power	1600 W
Power Supply	220 V / 50 Hz
Weight	32 kg

FULL-COLOR AND WHITE DTF PRINTING

The AGP E30 printer uses CMYK + white inks to produce designs intended for textile transfers.

EPSON F1080-A1 PRINTHEAD

Equipped with an Epson printhead to work with precision in DTF printing applications.

DTF CURING OVEN

Allows the adhesive powder to be cured on the printed film, preparing the design for subsequent transfer.

AUTOMATIC HEAT PRESS

Features an automatic lifting system that facilitates operation and speeds up the workflow.

DIGITAL TEMPERATURE AND TIME CONTROL

The press features a touchscreen to control transfer parameters, with adjustable temperature up to 210 °C and a timer of up to 999 seconds.

EVEN HEAT DISTRIBUTION

Designed to distribute heat evenly across its 38 × 38 cm working surface.

SLIDING SYSTEM

The press features a drawer-style mechanism that facilitates the placement and handling of garments during the process.

Applications

Production of DTF transfers for customizing T-shirts, sweatshirts, sportswear, uniforms, and other textile items compatible with this technology.

The kit allows the design to be printed, the film to be cured, and the design to be subsequently applied to the textile using the heat press.

Maintenance

Keep the equipment in a clean, dust-free environment.
Periodically clean the printing system following the manufacturer's instructions.
Monitor the storage and usage conditions of the inks.
Verify the oven's temperature and time settings according to the materials used.
Keep the heat press surface clean and follow the manufacturer's safety and maintenance recommendations.

Max width: 330mm

Speed: 4 m²/h

Media: PET Film DTF

Request a quote
